Charge Mate 2502

A secondary battery is becoming increasingly common. As a second battery can prevent the main battery from depleting and being unable to start, this seems like a safe and reliable solution.

The second battery, however, also has to be charged regularly. The Charge Mate series connects both batteries during charging and keeps them isolated when discharging.

The Charge Mate 1202 and 2502 are especially practical for small systems.

General Specifications:

  • Battery voltage: 12/24V
  • Max. current: 500 A
  • Number of modes: On, off, auto, start to assist
  • Dimensions, hxwxd: 90 x 80 x 85 mm/3.5 x 3.1 x 3.3 inch
  • Weight: 0.65 kg/1.4 lb
  • Compliance: CE

Technical Specifications:

  • Power consumption: switch open: < 1 mA at 12/24 V DC
  • Inrush current (250 ms): 2000 A
  • Switch on voltage: 13-15 V (12 V) / 26-30 V (24 V)
  • Switch on delay: 30 sec
  • Switch off voltage: < 12.25 V... > 15 (12 V) / < 25.5... > 30 V (24 V)
  • Switch off delay: 3 minutes
  • Relay: Electro-mechanical
  • Temperature range (ambient temp.): -40 °C to 60 °C/-40 °F to 140 °F
  • Protection degree: IP21

WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Product Information

Weight: 1.65 lb
Dimensions: 9× 5× 5in

Product Specifications

Manufacturer Part Number 83302502
Manufacturer Name Mastervolt
Drop Ships Direct from vendor no
Hazardous materials no
Truck Freight no
Exportable yes
First Class Mail no
Oversized no
Remanufactured no
Closeout no
Prop 65 yes
Returnable yes

California Proposition 65 Warning

This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

Product Manuals & Guides

Customer reviews

0 / 5
0 reviews
5★
0%
4★
0%
3★
0%
2★
0%
1★
0%
Reviews 0

No reviews yet

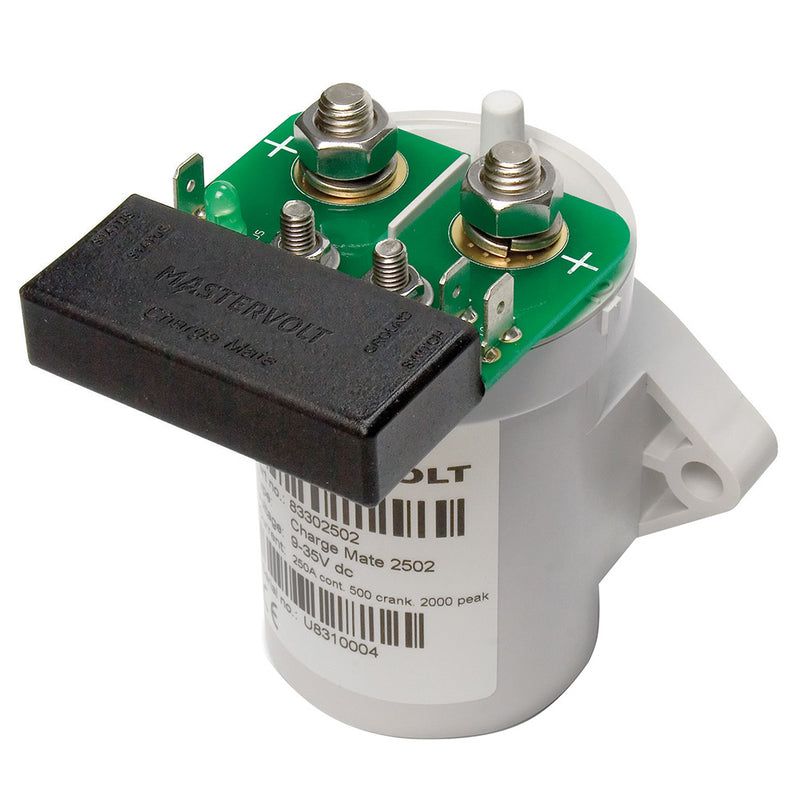

Mastervolt Charge Mate 2502
