Mechanical
  • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
  • Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
  • Contact Mat/Plating: Brass/Gold
  • Coupling Nut Mat/Plating: Brass/Nickel
  • Connector Outside Diameter: 0.59"
    Electrical
  • Current Rating: 4.0 Amps
  • Voltage Rating: 250 V
    Cable
  • Outer Jacket Mat/Color: PVC/Gray
  • Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)
  • Number of Conductors: 4X22 AWG, 22 AWG Drain Wire
  • Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)
    Environmental
  • Protection Class: IEC IP68, NEMA 1,3,4,6P
  • Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)
    Approvals
  • (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625,
    AWM 80 deg C 300V
  • (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C,
    AWM I/II A/B 80C 300V FT4
  • NMEA: NMEA 2000 Approved
  • Product Information
    Weight: 0.91 lb
    Dimensions: 8× 8× 2in
    Product Specifications
    Manufacturer Part Number CM-CG1-CF-06.0
    Manufacturer Name Maretron
    Drop Ships Direct from vendor no
    Hazardous materials no
    Truck Freight no
    Exportable yes
    First Class Mail no
    Oversized no
    Remanufactured no
    Closeout no
    Prop 65 no
    Returnable yes
    Product Manuals & Guides

    No user guides or manuals available for this product.

    Customer reviews

    0 / 5
    0 reviews
    5★
    0%
    4★
    0%
    3★
    0%
    2★
    0%
    1★
    0%
    Reviews 0

    No reviews yet

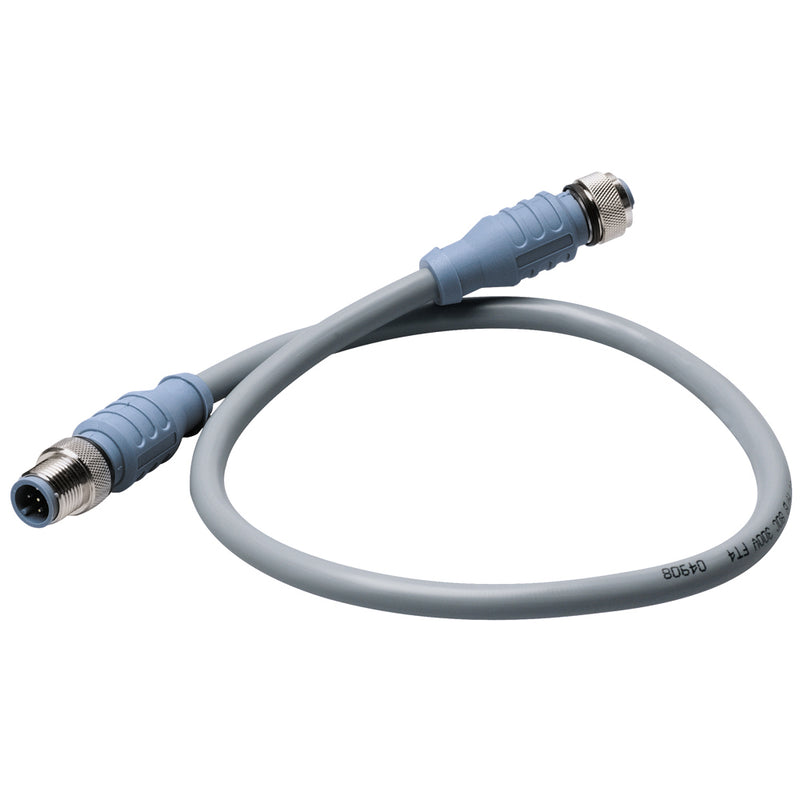

    Maretron Micro Double-Ended Cordset - 6 Meter
