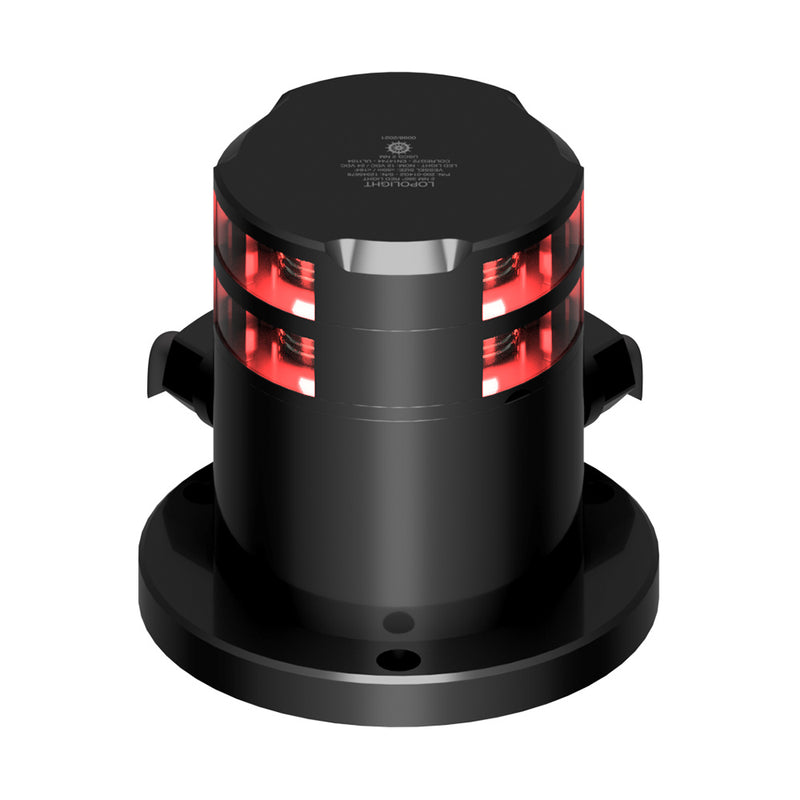

3nm Double Stacked Ice-Class 360 Degree - Red Light

Features:

• Built-in De-icing function
• Horizontally mounted on 400-037 alu base (IP68)
• Cable direction side
• Incl. HDPE base plate
• Quality cable glands - 3 sizes included:
• 9-17mm (3/8"-11/16") cable diameter
• 7-13mm (1/4"-1/2") cable

Specifications:

• Light Color: Red
• Dimensions metric: Ø92,5mm x 112mm
• Certification: This Navigation Light is certified by DNV, the Declaration of Conformity and the certificates can be found on www.lopolight.com under Support
• Intensity: >15cd
• Dimensions imperial: Ø3.6" x 4.4"
• Approved to: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
• Visibility: 3nm
• Operating temperature: -60°C to 55°C
• Mounting: Horizontal
• Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
• Operating Voltage: 20-32VDC
• EAN: 5704438012370
• IP rating: IP68
• Power draw (W): 2,9
• Connection: Plug connector
• Current consumption (mA @ 12VDC): 210
• Current consumption (mA @ 24VDC): 120
• Vessel size: Over 50M
• Min. feed wire gauge: 1.5mm2 AWG18
• Weight (Kg): 1.52 Kg
• Weight (Oz): 53.61 Oz
