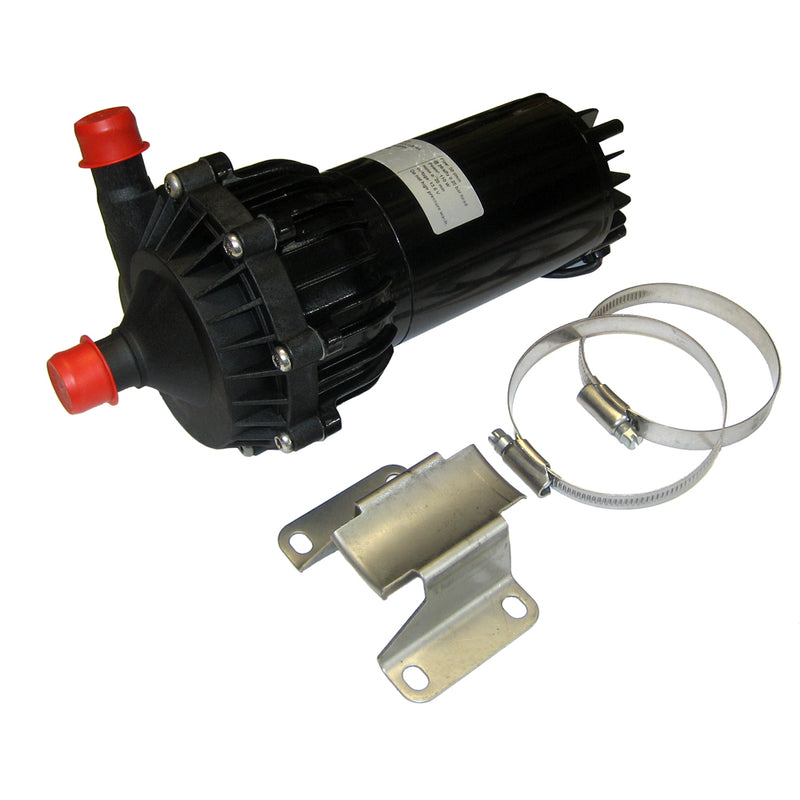

CM90P7-1 13.6V CIRCULATION PUMP D20

CM90 circulation pumps are a line of compact magnetic driven centrifugal pumps which combine high flow rates with very low electric current consumption. Suitable for fresh water, ethylene glycol and salt water circulation. Glass-fiber reinforced PPA body.

Specifications:

  • System Pressure:-0.3 to 3.0 bar; stationary max. 4.0 bar
  • Liquid: Water/glycol mixture; max. 60% glycol, fresh and salt water
  • Motor service life: More than 5,000 hours at nominal voltage, 10,000 start/stops. Interchangeable motor
  • Dry running: 30 minutes
  • Dimensions: 244mm L x 120mm W x 150mm H
  • Weight: 6.6lbs
  • Capacity: 17.2 GPM
  • Ports: 3/4"
Product Information
Weight: 6.66 lb
Dimensions: 11× 7× 6in
Product Specifications
Manufacturer Part Number 10-24750-09
Manufacturer Name Johnson Pump
Drop Ships Direct from vendor no
Hazardous materials no
Truck Freight no
Exportable yes
First Class Mail no
Oversized no
Remanufactured no
Closeout no
Prop 65 no
Returnable yes
