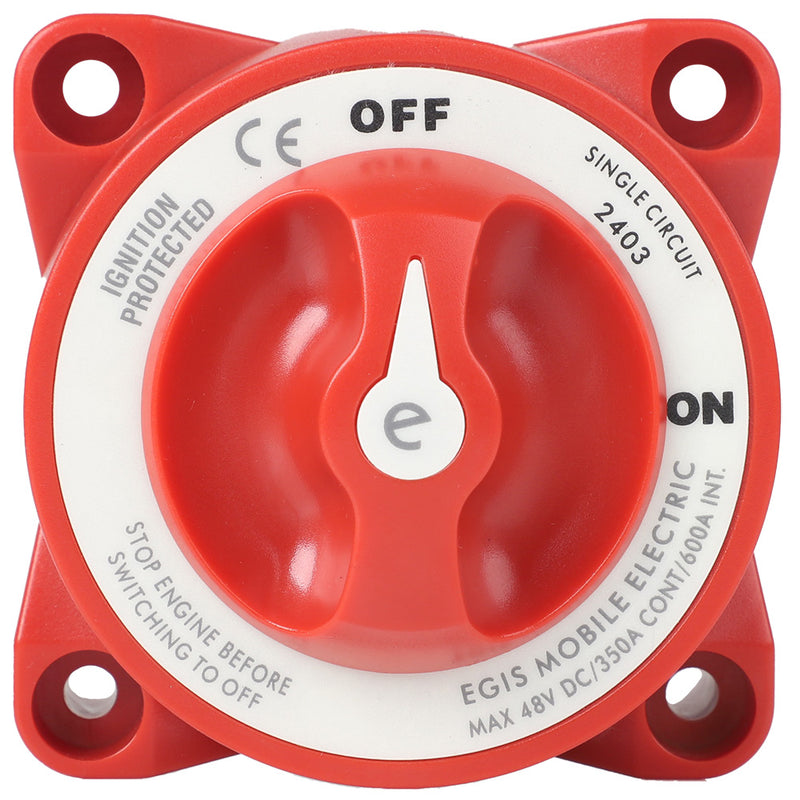

E-Series 350A Battery Switch Off/On

Sealed Against Dust & Water Intrusion - To ensure reliable circuit protection for the life of the electrical system installation.

Ignition Protected - Safe for installation in closed compartments with potential explosive gases.

Serrated Flange Lock Nuts - Improves resistance to cable terminal loosening in high-vibration environments.

Flexible Mounting Options - Allow for multiple mounting configurations and a variety of installation types.

Harsh Environment Design - With stainless steel hardware, serrated flange nuts, and high-temperature materials.

Specifications:

  • Maximum Voltage (Single Circuit): 48 Vdc
  • Maximum Voltage (Selector / Dual Circuit): 32 Vdc
  • Stud Size And Thread: 3/8”-16
  • Terminal Stud Torque: 140 in-lbs (15.8 N-m)
  • Ring Terminal Size Acceptance: 3/8” (M10)
  • Mounting Holes: #1/4" (M6) Screw
  • Live Switching Rating: 25 Amps
  • Ignition Protection Rating: SAE J1171 / ISO 8846
  • Bulkhead / Panel - Mounting Hole Size: 3-5/8" Diameter
  • Cable Size to Meet Rating: 4/0 AWG
Product Information
Weight: 0.9 lb
Dimensions: 7× 5× 4in
Product Specifications
Manufacturer Part Number 2403
Manufacturer Name Egis Mobile Electric
Drop Ships Direct from vendor no
Hazardous materials no
Truck Freight no
Exportable yes
First Class Mail no
Oversized no
Remanufactured no
Closeout no
Prop 65 no
Returnable yes
