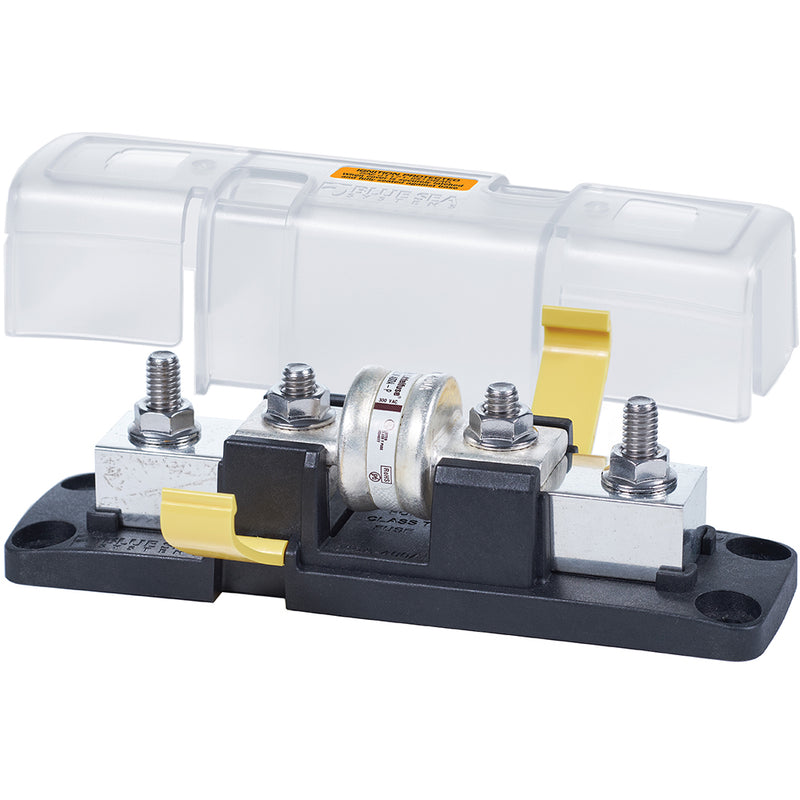

Class T Fuse Block with Insulating Cover - 225 to 400A

Allows the use of Class T fuses for fast acting circuit protection of inverters and other electronics

  • Four stud design provides ample access around connecting stud to install large cable lugs without obstruction from the fuse
  • Insulating cover satisfies ABYC/USCG insulation requirements
  • Cover breakouts allow wire access in any direction
  • Stud design ensures secure fuse mounting even with high heat
  • Stainless steel studs provide resistance to corrosion and high torque
  • One-piece stainless flange nuts ensure safe and secure connections
  • UL 94-V0 base resists high heat

Technical Specifications:

  • Cable Size: Up to 4/0 AWG
  • Ignition Protected: Yes
  • Maximum Amperage: 320A
  • Maximum Voltage: 160V DC
  • Fuse Mounting Blocks: Tin-Plated Copper
  • Terminal Stud Size: 5/16"-18 (M8)

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Product Information
Weight: 1.77 lb
Dimensions: 9× 7× 3in
Product Specifications
Manufacturer Part Number 5502100
Manufacturer Name Blue Sea Systems
Drop Ships Direct from vendor no
Hazardous materials no
Truck Freight no
Exportable yes
First Class Mail no
Oversized no
Remanufactured no
Closeout no
Prop 65 yes
Returnable yes
California Proposition 65 Warning

This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
