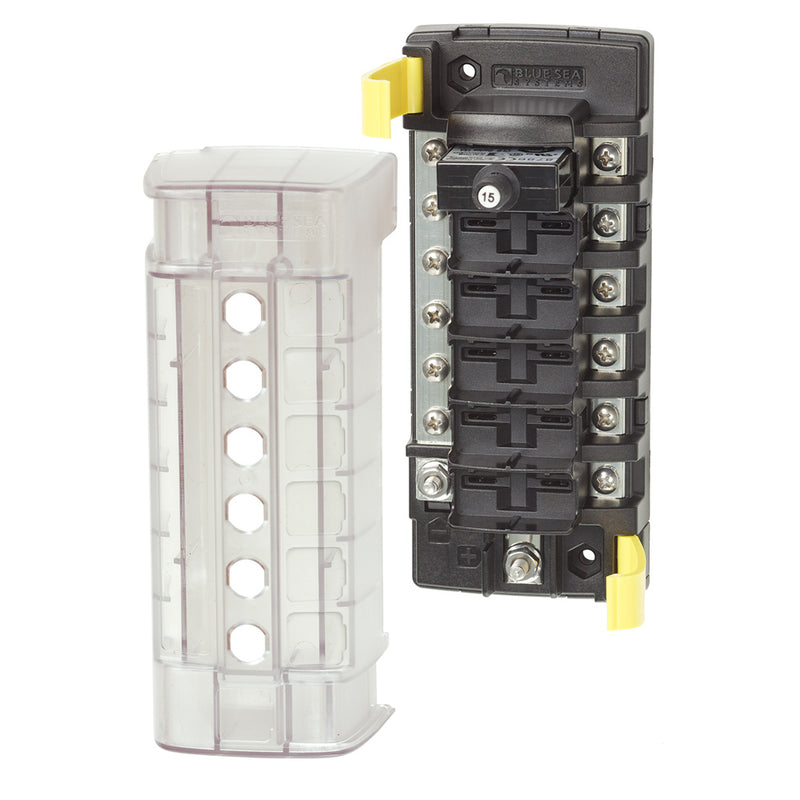

ST CLB Circuit Breaker Block - 6 Position w/Negative Bus

Features
  • Quick connect clips allow circuit breakers to snap easily into place
  • Tin-plated copper busses and screw terminals
  • Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
  • Easy to open clip on cover
  • Breakouts allow wire access in two directions
  • Accepts ring terminals
  • Optional push button waterproof boots or dress nuts can be installed over cover


Specifications:
Circuits: 6
Maximum Amperage: 100A (per block) 32A (per circuit)
Maximum Voltage: 32V DC
Mounting: #8 Screw (M4) or #8 Nut
Negative Bus: Yes
Source: Common SourceMinimum Operating Temperature: -10° C
Maximum Operating Temperature: 60° C
Mounting Centers: 5.63"(143 mm)
Screw Terminal Type: #8-32 Screws with Captive Star Lock Washer
Height: 6.69"(169.93 mm)
Weight: 0.75lb (0.34 kg)

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Product Information
Weight: 0.92 lb
Dimensions: 11× 4× 3in
Product Specifications
Manufacturer Part Number 5052
Manufacturer Name Blue Sea Systems
Drop Ships Direct from vendor no
Hazardous materials no
Truck Freight no
Exportable yes
First Class Mail no
Oversized no
Remanufactured no
Closeout no
Prop 65 yes
Returnable yes
California Proposition 65 Warning

This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
