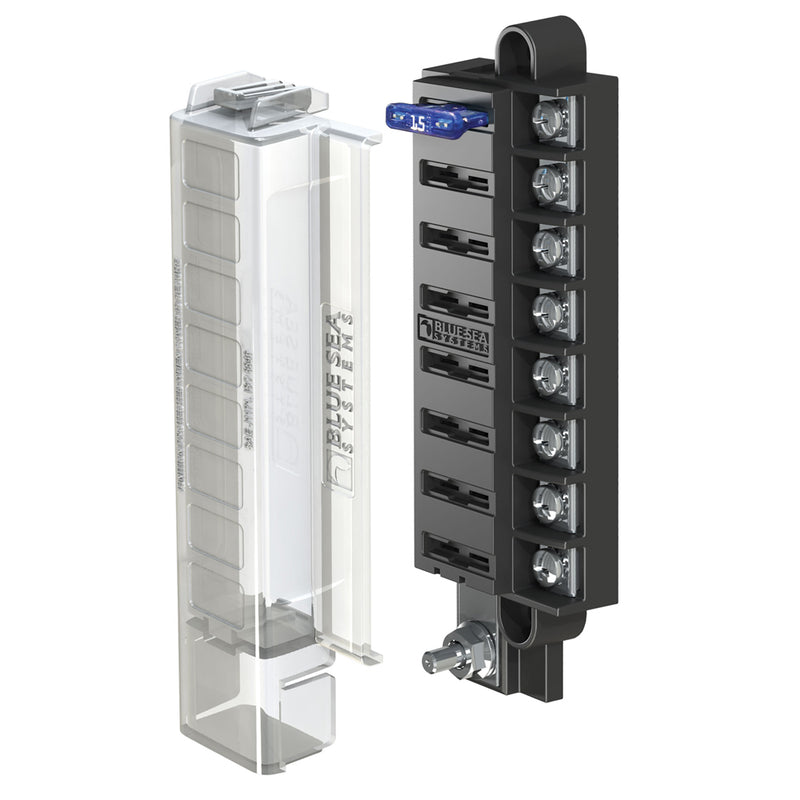

ST Blade Compact Fuse Blocks - 8 Circuits w/Cover

Provides surface mount circuit protection for ATO®/ATC® Fuses in a compact footprint. The single side design allows wire entry from one side to maximize space.
  • Compact common source fuse block
  • Accepts ATO® and ATC® fast acting blade fuses
  • Single side entry wiring
  • Ignition Protected-meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
  • Insulating cover meets ABYC/USCG insulation requirements
  • Tin-plated copper buses and fuse clips
  • Accepts ring or snap fork type terminals
  • Small format standard and custom labels available


Specifications
  • Circuits:8
  • Maximum Amperage: 100A per block / 30A per circuit
  • Maximum Voltage:32V DC
  • Mounting: #8 Screw (M4)
  • Screw Terminal Torque:#8-32 Screws with captive star lock washer in-lb (0 Nm)

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Product Information
Weight: 0.39 lb
Dimensions: 9× 3× 2in
Product Specifications
Manufacturer Part Number 5046
Manufacturer Name Blue Sea Systems
Drop Ships Direct from vendor no
Hazardous materials no
Truck Freight no
Exportable yes
First Class Mail yes
Oversized no
Remanufactured no
Closeout no
Prop 65 yes
Returnable yes
California Proposition 65 Warning

This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
