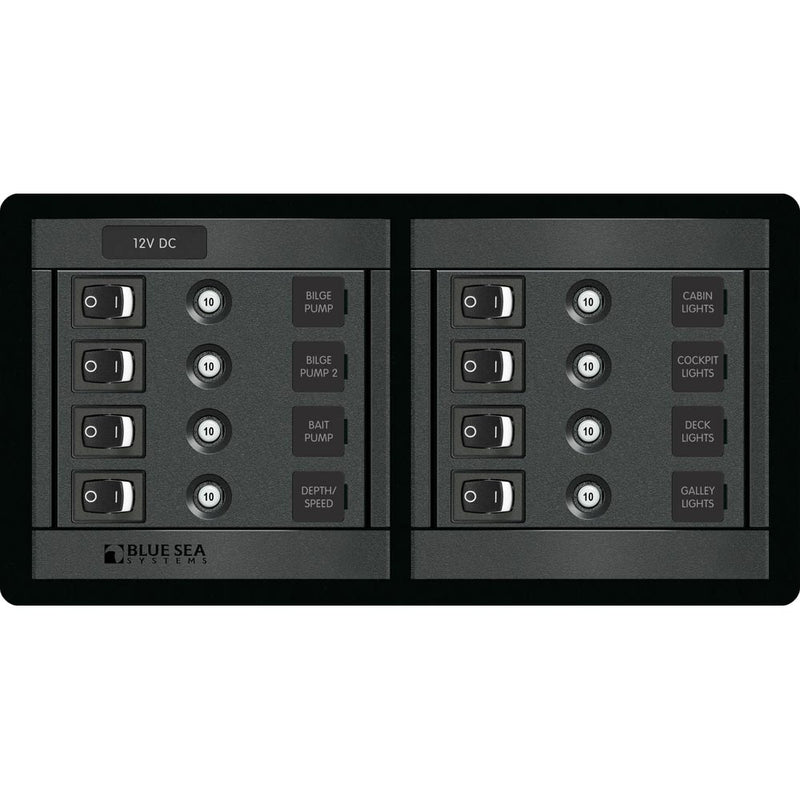

8 Position Switch CLB Horizontal

Features:

• Available with voltmeters and ammeters

• Panels with meters include a toggle switch to monitor voltage on up to three battery banks

• Includes 4205-Square Format Label Set

Specifications:

• Positions: 8

• Nominal Voltage: 12V DC

• Maximum Amperage*: 80A

• Height: 4.75" (120.65mm)

• Width: 9.25" (234.95mm)

• Depth: 3.50" (88.9mm)

• Weight: 2.89lb (1.31kg)

* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.

Includes:
(8) - 7480 - Rocker Switch SPST - ON-OFF
(8) - 7054 - Push Button Reset Only Quick Connect Circuit Breaker - 10 Amps
(1) - 4205 - Basic DC Label Kit - 30 Black Square Labels [LABEL]
