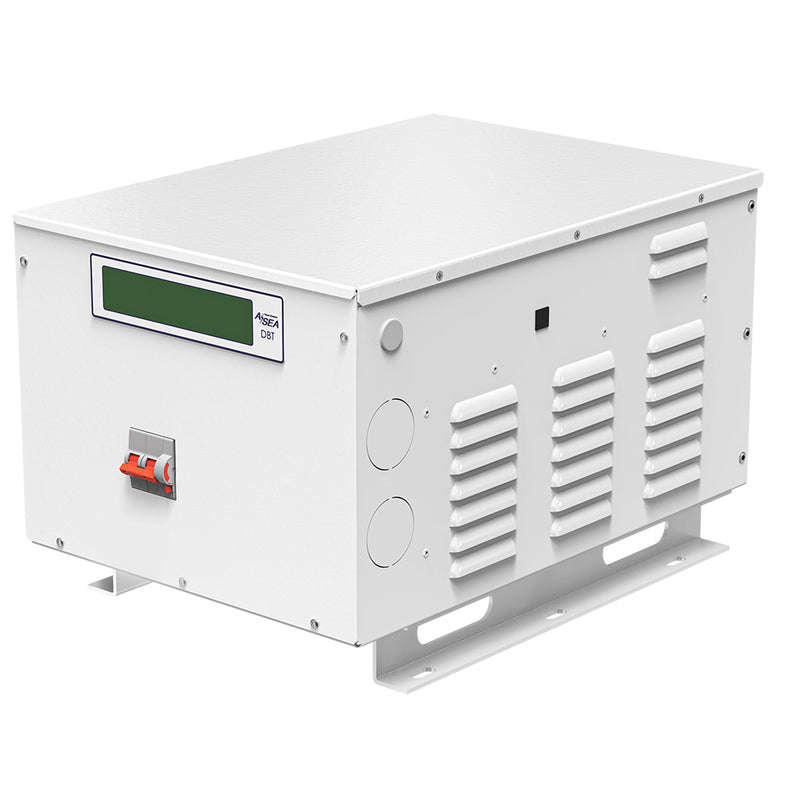

DBT12 Dock Boost Transformer - Single Phase Output
The smart isolation boosting transformer. The Dock Boost Transformer (DBT) provides precision voltage regulation to the vessel, delivering complete protection from the most common shore power problems, including brownouts, spikes, sags, and low-line or high-line voltage conditions from the dock power pedestal. The DBT also provides three levels of boost to keep your ship powered even when input voltages sag by 35%.
The DBT features a compact and lightweight footprint. By providing an industry-recognized mounting pattern, it will fit as the perfect replacement for new construction or retrofit applications (direct replacement for the Charles Iso-Boost).
The DBT12/15 accepts any input voltage ranging from 167 V-270 V (47-70 Hz) and provides a Split phase 120/240V or 115/230 V output nominal. The DBT24 accepts nominal voltages of 230, 400V, and 480V - each with the same wide range – to provide a 115/230V Split phase output.
Features:
No additional information available for this product.
| Manufacturer Part Number | 628019-001 |
|---|---|
| Manufacturer Name | ASEA Power Systems |
| Drop Ships Direct from vendor | no |
| Hazardous materials | no |
| Truck Freight | yes |
| Exportable | yes |
| First Class Mail | no |
| Oversized | no |
| Remanufactured | no |
| Closeout | no |
| Prop 65 | no |
| Returnable | no |
