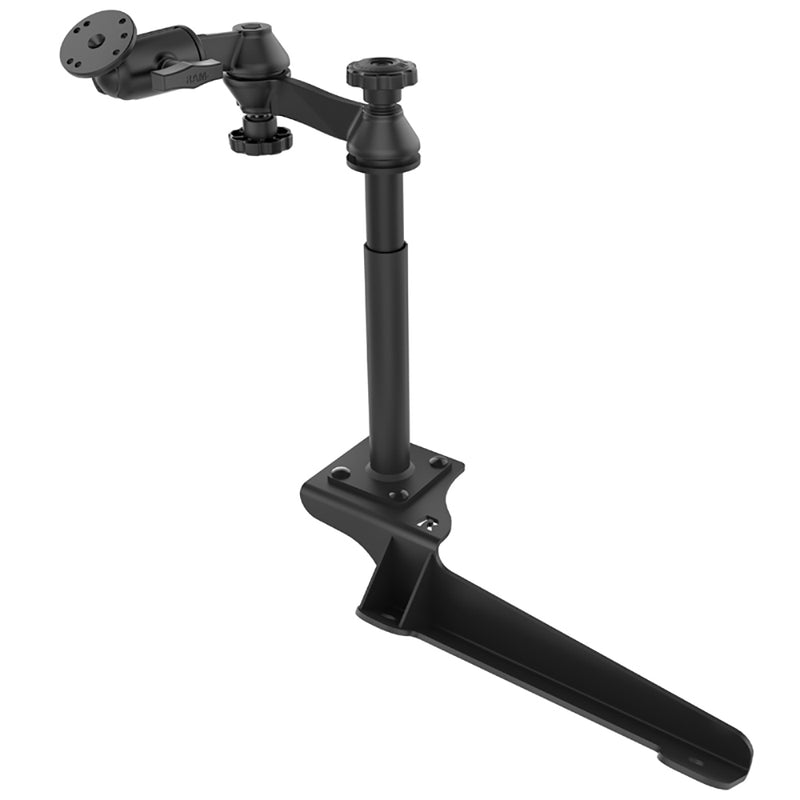

RAM® No-Drill™ Mount for '97-16 Ford F-250 - F750 + More

This RAM® No-Drill™ mounting system installs quickly and easily into a range of Ford F-Series and Ford Excursion vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12” to 18”. Dual swing arms provide articulation and 12” of reach for passenger and driver access to the mounted device. The round ball base attached to the end of the swing arm supports a variety of tablet and laptop holders, while RAM® rubber ball and socket technology provides additional adjustability as well as shock and vibration isolation.

Features:

• RAM® No-Drill™ base offers low-profile mounting; telescoping pole allows for height adjustments
• Dual articulating swing arm allows for ideal device placement; compatible with a variety of tablet and laptop holders
• Made of powder-coated steel and marine-grade aluminum
• Backed by a lifetime warranty
• Plate Size: 2.5" Diameter
• Ball/Socket Size: C Size (1.5")
• Materials: Powder coated steel, Marine grade-aluminum

Hardware Included:

• Assembly Hardware
• (2) M12-1.75 x 100mm Hex Bolts
• (2) M12-1.75 x 60mm Hex Bolts
• (2) M12 Lock Washers
• (2) 3/8" Stand-Offs
• (2) 1" Stand-Offs

Hole Pattern:

• 4-Hole AMPS: 1.181" x 1.496"
• 3-Hole 120-Degree: 1.812" Diameter
• Seat Bolt Distance: 11.5" center to center
