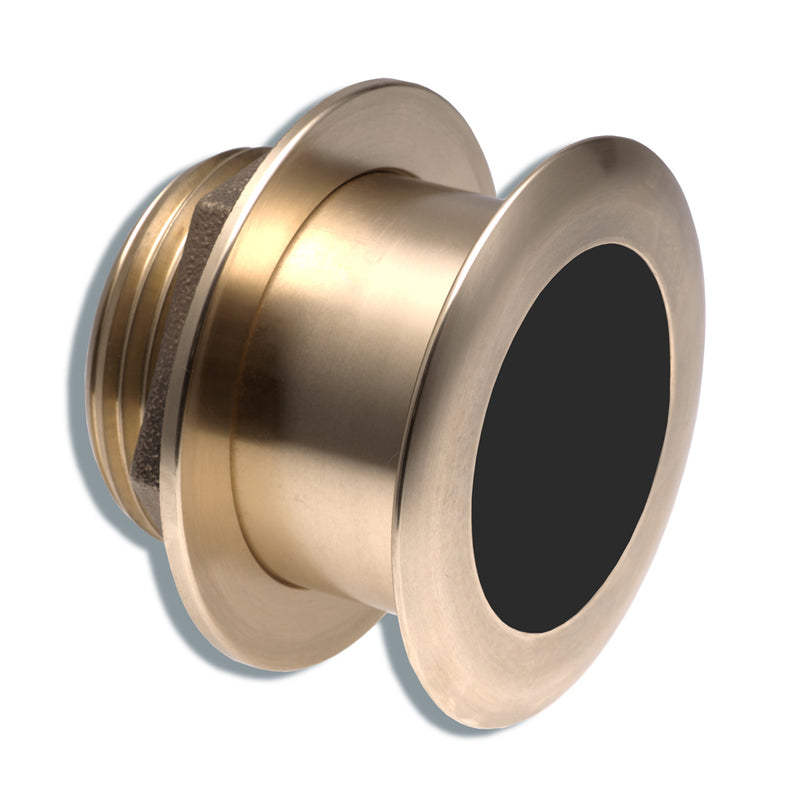

B175L Bronze Low Profile Thru Hull 20° Tilted Element Transducer 1kW

Features
  • Material: Bronze
  • For use with CP450C or CP470 Chirp Sonar Module
  • Power (RMS): 1Kw
  • Max Depth(ft): 2,500
  • Frequency (khZ): 40-60
  • Beam Width(L/H): 32°-21°
  • Records: Depth / Temperature
  • Approved Hull Material: Fiberglass / Wood
  • Cable Length (Ft/M): 33ft / 10M
  • Supported Deadrise / Transom Angles: 16-24° Deadrise
  • Note: Using a Single B175 or B75 requires the A80328 Single Operation Cable
Product Information
Weight: 11.6 lb
Dimensions: 12× 10× 8in
Product Specifications
Manufacturer Part Number A80048
Manufacturer Name Raymarine
Drop Ships Direct from vendor no
Hazardous materials no
Truck Freight no
Exportable yes
First Class Mail no
Oversized no
Remanufactured no
Closeout no
Prop 65 no
Returnable yes
Product Manuals & Guides

No user guides or manuals available for this product.
