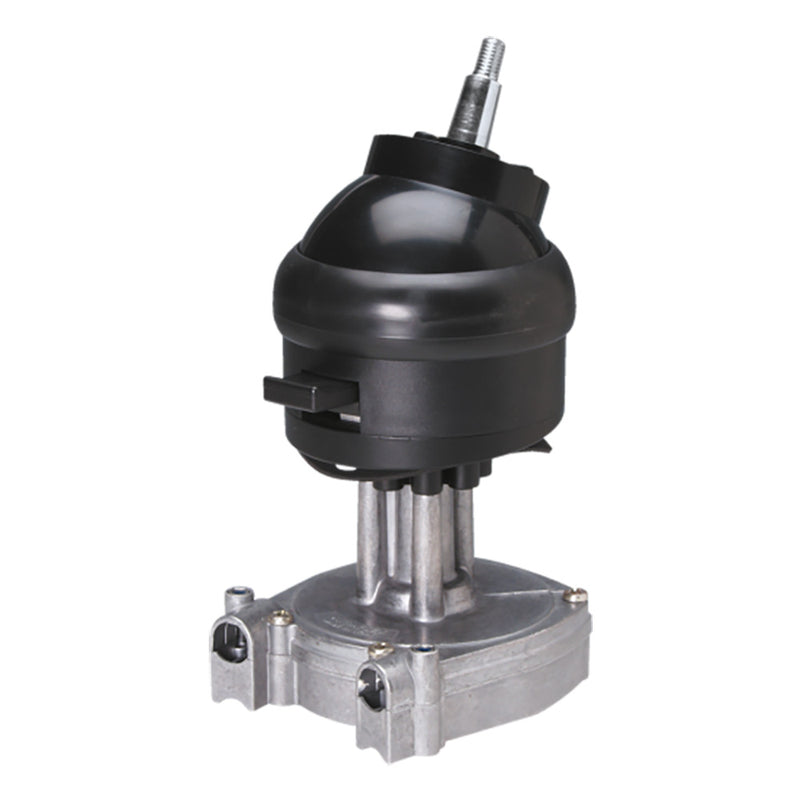

T83FC Zero Torq Rotary Helm Single Cable Steering *Tilt Mechanism Sold Separately

T83FC has a tilt range of 48° and five locking positions, fast to get connected and easily installed with a planetary gear design and 3.8 approx steering wheel turns lock to lock.

Features:

  • X52 Tilt Mechanism sold separately
  • Tilt range of 48° and five locking positions
  • Fast connect, simple installation
  • The tilt device eliminates under-dash movement
  • Standard 3/4” tapered shaft – stainless steel
  • All stainless steel cable output ends
  • Corrosion resistant materials
  • T83NRFC steering system is not to be used on boats equipped with engines that exceed the maximum horsepower rating of the boat
  • X52 tilt mechanism fits Ultraflex tilt mount rotary and rack and pinion steering helms as well as Ultraflex tilt mount hydraulic pumps except SilverSteer™ and MasterDrive™ steering systems
  • For boats faster than 50 mph, our hydraulic steering systems are recommended
  • Optional steering wheel
  • Engine connection kits
  • Exceeds EN 28848 safety standards
  • Exceeds ABYC P17 safety standards

Specifications:

  • M66 steering cable stroke: 228 mm (9")
  • Lock-to-lock steering wheel turns: Approx. 3,8
  • Max. dash depth: 25,4 mm (1")
  • Max. steering wheel diameter: 406 mm (16")
  • Min. steering cable bend radius: 200 mm (7.9")

*Tilt Mechanism Sold Separately

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Product Information
Weight: 5.7 lb
Dimensions: 11× 7× 7in
Product Specifications
Manufacturer Part Number T83FC
Manufacturer Name Uflex USA
Drop Ships Direct from vendor no
Hazardous materials no
Truck Freight no
Exportable yes
First Class Mail no
Oversized no
Remanufactured no
Closeout no
Prop 65 no
Returnable no
