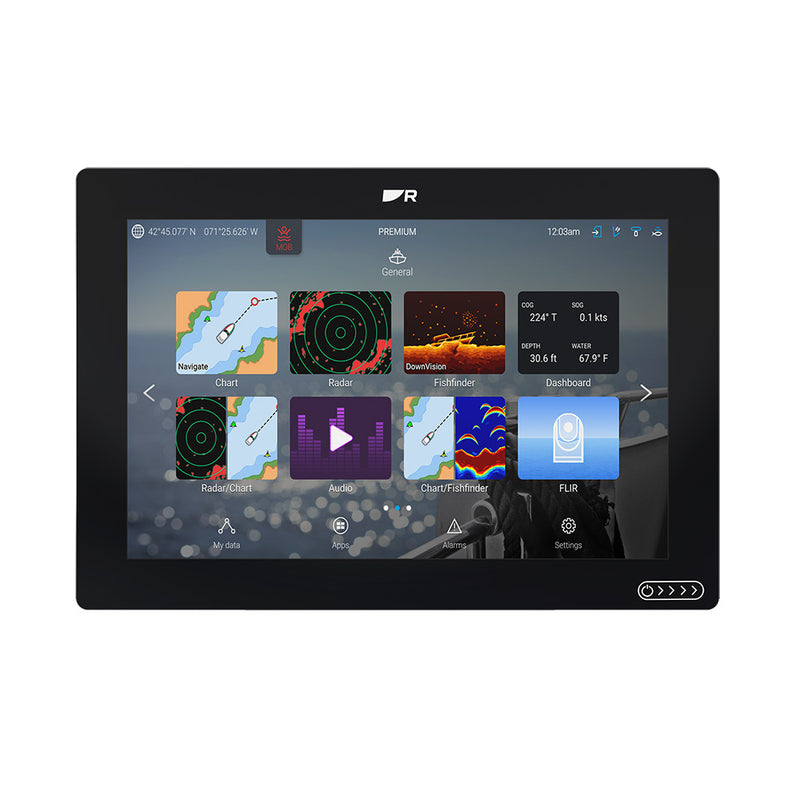

Axiom 2 12" Multifunction Display with Lighthouse North America Chart
Axiom 2 is the next generation of the award-winning Raymarine Axiom chartplotter product line. Featuring a powerful 6-core processor, rugged HydroTough™ displays, and expanded app and engine integration, Axiom 2 delivers a faster, more intuitive, and more responsive navigation experience for leisure boaters of all kinds. Designed for sailors, anglers, cruisers, and motor-yacht owners, Axiom 2 combines next-level performance with Raymarine’s signature durability and ease of use.
Features:
- Rugged all-weather, marine-ready design backed by a 3-year warranty.
- 6-core processor delivers faster chart rendering, quicker startups, and smoother networking and video performance.
- 7, 9, and 12-inch HydroTough™ IPS touchscreen displays, with high brightness (up to 1,800 nits) for all-day visibility.
- Powered by LightHouse OS with an intuitive interface and access to over 30 LightHouse apps.
- RayNet Gigabit Ethernet for high-speed integration of radar, cameras, sonar, and accessory devices.
- 64 GB of onboard storage for apps, charts, video, and user data.
- Broad chart compatibility, including LightHouse Charts Gen 2, Navionics, C-MAP, and more.
- Built-in high-performance GPS / GNSS with fast 10 Hz position updates.
- Smart vessel monitoring and control, including engine integration, NMEA 2000, and digital switching support.
Technical Specifications:
- Dimensions (Trunnion mounted) - 12.36" (W) x 8.93" (H) x 7.01" (D)
- Dimensions (Surface / Flush mounted) - 12.36" (W) x 8.54" (H) x 7.01" (D)
- Voltage - Nominal: 12 V DC / Operating range: 8 to 16 V DC
- Power Consumption (max) - 15.48W
- Inline fuse / thermal breaker rating - 7A
- Size & Type - 12.1" (diagonal), IPS
- Resolution - WXGA 1280 x 800
- Brightness/luminance - 1800 bits / 1800 cd/m²
- Protective Coating - HydroTough™ (Oleophobic)
- NMEA 2000 / DeviceNet - 1x DeviceNet male connector (on power cable) (LEN rating: 1)
- Network - Wired: 1x RayNet (10 / 100 / 1000 Mbit/sec Ethernet), WiFi: 1x 802.11 b / g / n, Bluetooth: v4.0
- GNSS - Internal GNSS receiver: GPS / GLONASS / BeiDou (incl. SBAS) (Cold start: <2 minutes) (10 Hz refresh rate)
- Internal Storage - 64 GByte (Solid State)
- External MicroSD storage - 1x MicroSDXC card slot
Product Information
| Weight: |
11.79 lb
|
| Dimensions: |
16× 13× 8in |
Product Specifications
|
Manufacturer Part Number
|
E70724-00-102
|
| Manufacturer Name |
Raymarine |
| Drop Ships Direct from vendor |
no |
| Hazardous materials |
no |
| Truck Freight |
no |
| Exportable |
yes |
| First Class Mail |
no |
| Oversized |
no |
| Remanufactured |
no |
| Closeout |
no |
| Prop 65 |
no |
| Returnable |
yes |
