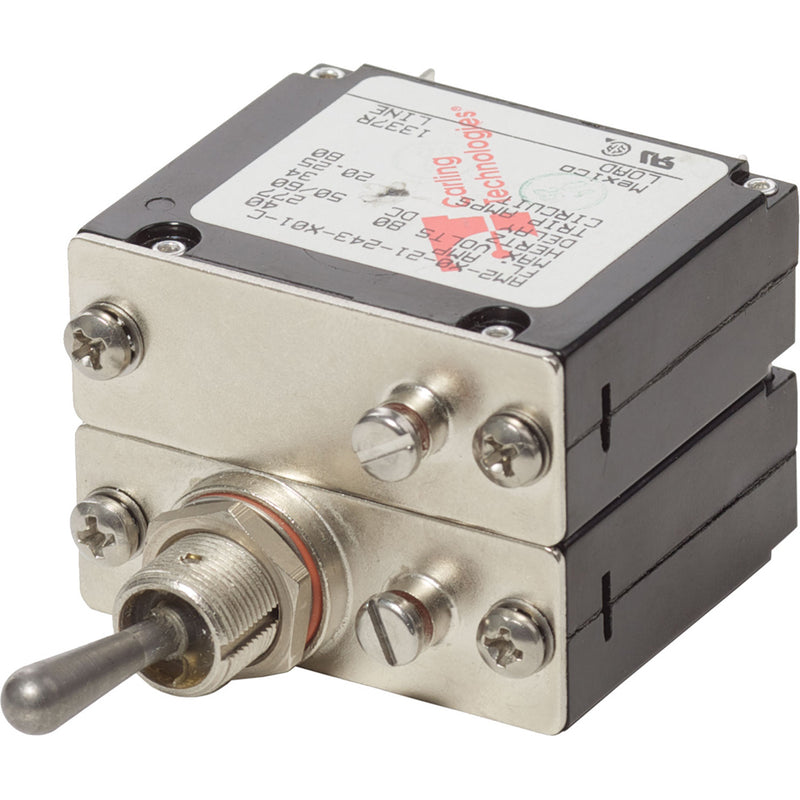

7316 COTS Military Grade A-Series 40 Amp

May be suitable for use when military specifications are required under CFR 46.

Specifications:

  • Amperage: 40A
  • Actuator Style: Metal Toggle
  • Poles: 2
  • Max Voltage: 277V AC, 65V DC
  • Circuit Breaker Type: Magnetic Hydraulic - Trip Free
  • Interrupt Capacity: 1500 A AC, 7500A DC
  • Min Operating Temp: -40°C
  • Max Operating Temp: 85°C
  • Mounting Boss: 1/2-32 Hex Nut SS
  • Mounting Nut Torque: 30"-lb
  • Screw Terminal Torque: 14"-lb
  • Switching Cycles: 6000 Electrical/4000 Mechanical
  • Terminal Screw: #10-32 SS
  • Weight: 0.13lb (0.06 kg)
  • UL 1077
Product Information

No additional information available for this product.

Product Specifications
Manufacturer Part Number 7316
Manufacturer Name Blue Sea Systems
Drop Ships Direct from vendor no
Hazardous materials no
Truck Freight no
Exportable yes
First Class Mail no
Oversized no
Remanufactured no
Closeout no
Prop 65 no
Returnable yes
Product Manuals & Guides

No user guides or manuals available for this product.

Customer reviews

0 / 5
0 reviews
5★
0%
4★
0%
3★
0%
2★
0%
1★
0%
Reviews 0

No reviews yet

Blue Sea 7316 COTS Military Grade A-Series 40 Amp
Blue Sea 7316 COTS Military Grade A-Series 40 Amp
$117.99
