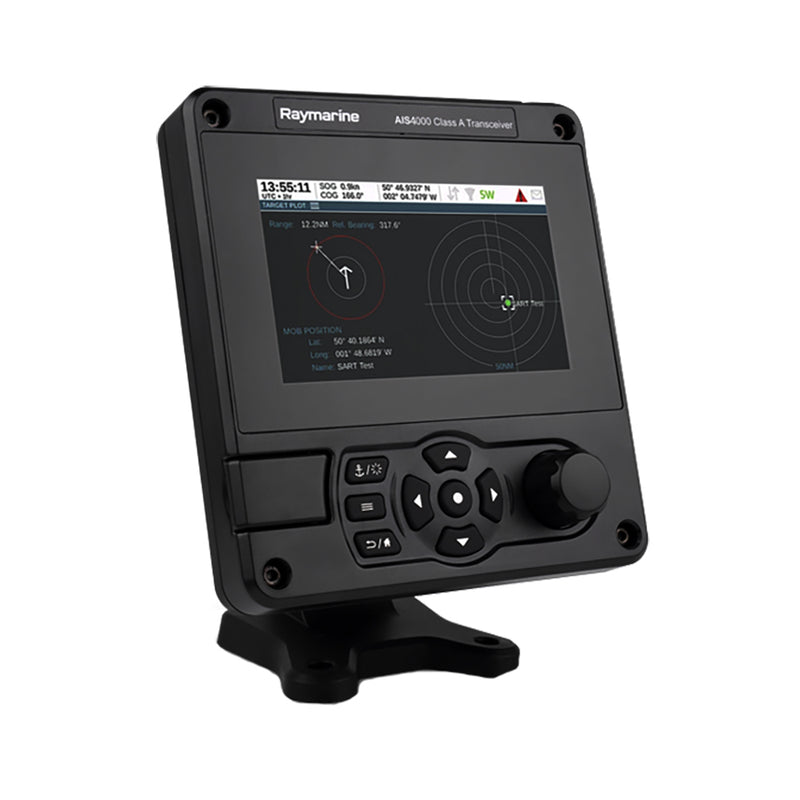

AIS4000 Class A Automatic Identification System (AIS) Transceiver

Designed for commercial vessels, luxury yachts, and SOLAS high-seas shipping, the AIS4000 Automatic Identification System (AIS) transceiver delivers robust Class A AIS network capability and is engineered to withstand the harsh weather, shock, and vibration of any vessel class.

The AIS4000 boasts a high-definition color display for quick access to integrated charts, alarms, and tracking. Additional support for wired and wireless networking with shipboard systems makes AIS4000 a premier SOLAS and Inland Waterway-certified Class A transceiver.

Advanced Class A AIS Capabilities:

• AIS4000 is a full-function Automatic Identification System transceiver certified for SOLAS and Inland Waterway applications.
• Fourth-generation AIS technology for expanded speed, range, and processing performance
• Full-color target display with optional C-MAP ENC mapping
• Integrated Man Overboard/PLB alerting and tracking system
• CPA/TCPA data and alarms

The full-featured AIS4000 brings a level of functionality to Class A transceivers:

• Large 5” 800 × 480 color display
• Integrated Wi-Fi
• NMEA 2000
• Easy-to-use, intuitive interface

Designed for harsh conditions, AIS4000 is right at home on any vessel class:

• Certified to the highest industry standards for waterproofness, shock, and vibration
• Compact enclosure with NMEA2000 and NMEA0183 connectivity
• Junction box included for expanded shipboard sensor and ECDIS connectivity
• Flexible overhead, bulkhead, desktop, and surface mount options

Features:

• Large 5” 800 x 480 color display
• Navigation chart display via SD card
• Integrated Wi-Fi
• NMEA2000 and NMEA0183 connectivity
• Integrated MOB/PLB alerting and tracking system

AIS4000 Transceiver System Includes:

• E70601 - AIS4000 Bundle
• A80589 - GNSS Antenna
• A80587 - Power Cable
• A80593 - 2 x Data Interface Cables
• A80586 - Fixings Pack
• A06045 - DeviceNet to STNg Cable
• Literature - Owner's Manual, Warranty Card, Mounting Template, and Quick Start Guide
